5 to 1000V/Max 5x10^6Ω to 2x10^16Ω Digital Super Megohmmeter

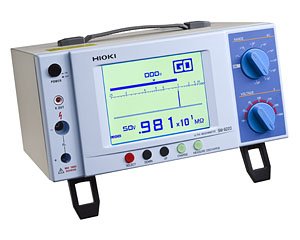

The SM-8200 Digital Super Megohmmeter series are insulation resistance meters consisting of a constant voltage power supply and a high sensitivity current measuring element, and are designed to measure the electrical resistance of insulation materials with high insulating properties.
SM-8213: From 5V to 100V DC, 2x10^12 Ω
SM-8215: Up to 1000V, 2x10^13 Ω
SM-8220: Up to 1000V, 2x10^16 Ω
Note: RS-232C connection cable: The optional RS-232C Cable 9637 cannot be used with this product. Use a commercially available straight 9-pin/9-pin cable.
Ultra megohm measurement
• Digital/analog display on LCD
• Compatible for measurement of several sample types with electrodes & other devices
Basic specifications (Accuracy guaranteed for 1 year)
| SM-8213 | SM-8215 | SM-8220 | ||
| Measuring resistance range | 5 V | 2.5 ×10^4 - 1 ×10^11 Ω | ||
| 10 V | 5 ×10^4 - 2 ×10^11 Ω | 5 ×10^4 - 2 ×10^14 Ω | ||
| 15 V | 7.5 ×10^4 - 3 ×10^11 Ω | |||
| 25 V | 1.25 ×10^5 - 5 ×10^11 Ω | 1.25 ×10^5 - 5 ×10^14 Ω | ||
| 50 V | 2.5 ×10^5 - 1 ×10^12 Ω | 2.5 ×10^5 - 1 ×10^12 Ω | 2.5 ×10^5 - 1 ×10^15 Ω | |
| 100 V | 5 ×10^5 - 2 ×10^12 Ω | 5 ×10^5 - 2 ×10^12 Ω | 5 ×10^5 - 2 ×10^15 Ω | |
| 250 V | 1.25 ×10^6 - 5 ×10^12 Ω | 1.25 ×10^6 - 5 ×10^15 Ω | ||
| 500 V | 2.5 ×10^6 - 1 ×10^13 Ω | 2.5 ×10^6 - 1 ×10^16 Ω | ||
| 1000 V | 5 ×10^6 - 2 ×10^13 Ω | 5 ×10^6 - 2 ×10^16 Ω | ||
| Measuring accuracy | ±10 % (within 10 times range of min. value on each range at 20°C ), but ± 20 % at 10^8 range of the SM-8220 | |||
| Output current | Max. 50 mA | Max. 2 mA | ||
| Display | LCD (digital & analog display) | |||
| Standard function | Timer (1 to 999s), Comparator, Remote start, HV-EN (inter lock) | |||
| Interfaces | RS-232C, Comparator output (open-collector) | |||
| Power supply | Selectable 100, 120, 220 or 240 V AC ±10%, 50/60 Hz, 25 VA | |||
| Dimensions and mass | 284 mm (11.18 in) W × 139 mm (5.47 in) H × 215 mm (8.46 in) D, 4.3 kg (151.7 oz) | |||
| Accessories | Instruction manual ×1, Power cord ×1, Measuring lead (black) 0GE00001 ×1, Measuring lead (red) 0GE00002 ×1, Short plug (internal) ×1 | |||
